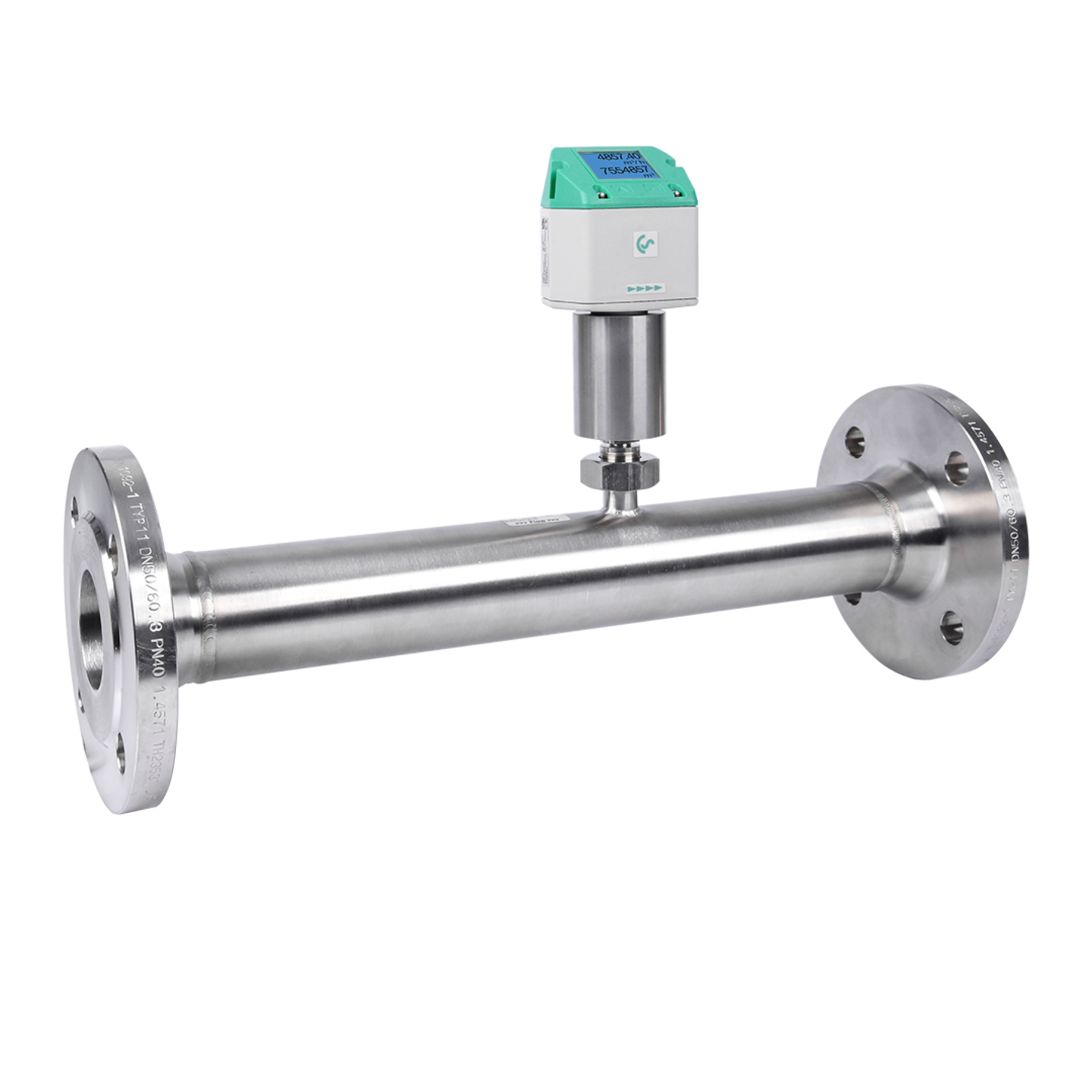

VD 520 - Inline flow meter

  • Ready-to-use compact design to minimise installation effort - therefore no volume corrector required
  • Provides Flow, Total consumption, Temperature and Pressure

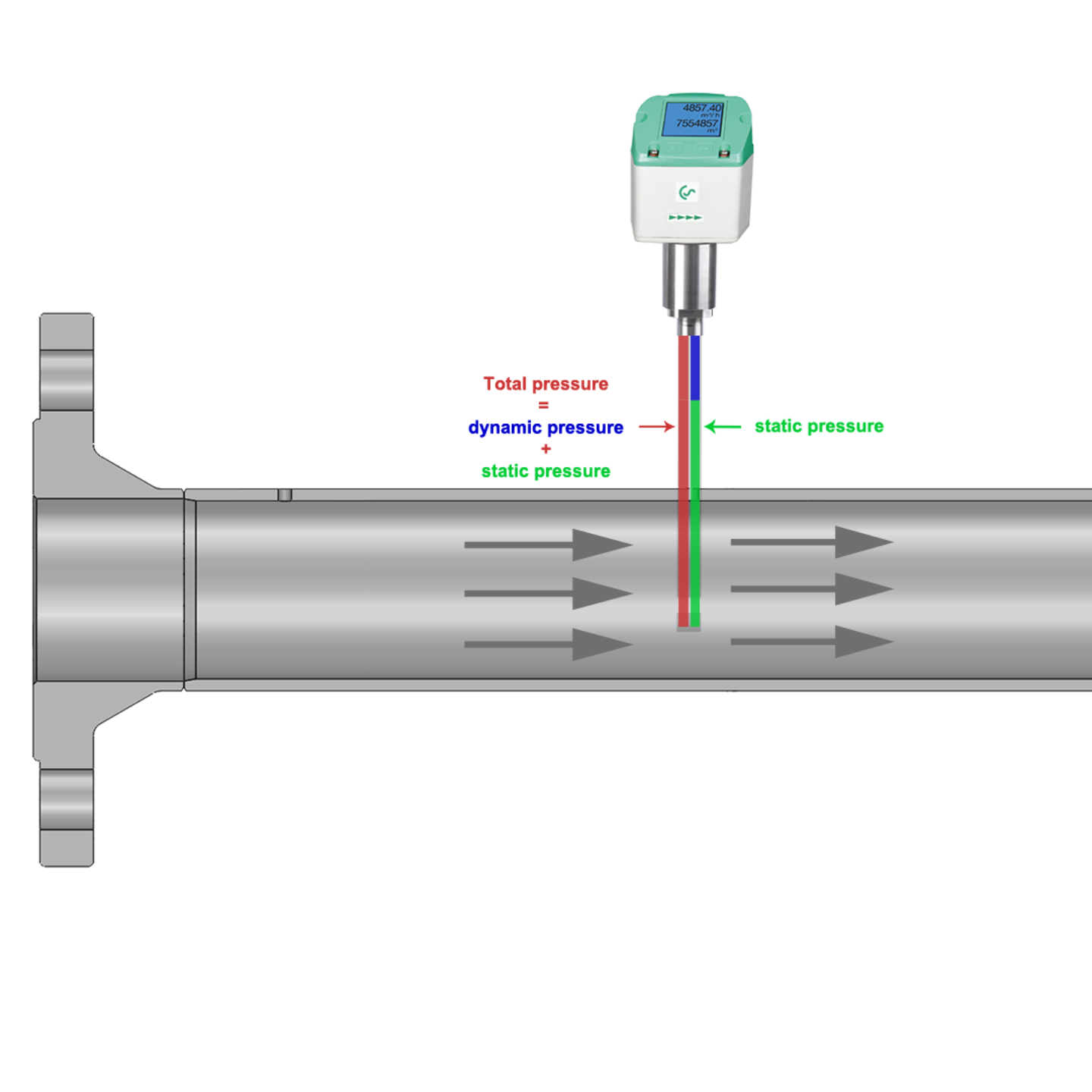

  • Differential pressure sensor element with unique sensitivity, measures highly accurately at < 2 m/s
  • Large flow measuring range with extended measuring span thanks to the use of measuring sections with a reduced inner diameter

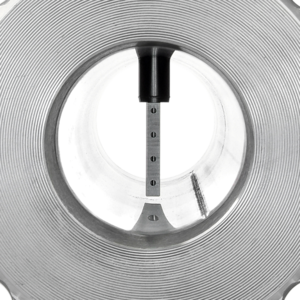

  • Smaller inlet sections due to the use of an averaging pitot tube
  • Robust design, no moving parts
  • Sensor head can be removed for calibration
na požadavek
Produkt byl přidán do žádosti.
na požadavek

Do you have specific requirements?
Select the appropriate attributes in our configurator and receive a customized quote for your request.

Configure product

Podrobnosti

Area of application:

  • Wet compressed air
  • Technical gases
  • Mixed gases: e.g. Natural gas/H2
  • LPG
  • propane
  • CO2
