Compressed air flow meters and gas flow meters

Flow measurement technology since 2004: We develop, manufacture and calibrate flow meters and flow sensors for compressed air and industrial gases – for flow metering and air consumption monitoring. Thermal mass flow, differential pressure, vortex or clamp-on ultrasonic – depending on model and version, for DN 8 to DN 1000 (NPS ¼–40) and high pressures up to 100 bar (approx. 1,450 psi); selected versions with ATEX/IECEx or DVGW approval. We help you select and configure the right inline, insertion or clamp-on flow meter for your application.

23 products

Unsure which Product to choose?

Use our Filters.



VC 600 Clamp-on Ultrasonic Flow Meter

Clamp-on ultrasonic measurement for retrofits and temporary use, without opening the pipe. Quick-release clamping system for metal pipes: outside diameter 25–90 mm (approx. 0.98–3.54 in.), from 3 bar gauge (approx. 43.5 psig); no sensor-imposed upper pressure limit. Larger pipe diameters on request.

More

VA 526 – Compact flow sensor for compressed air and gases

Compact inline sensor for flow, consumption and temperature at machines and points of use. No straight inlet runs with the optional flow straightener. Optional pressure and dew point measurement; Bluetooth and CS SensorApp for easy set-up.

More

CMM 500 – High-precision measurement of the compressor’s delivery capacity

Flanged Venturi measuring section for compressor capacity and reference measurements, available in DN 25–200 (NPS 1–8). Measures flow, pressure and temperature in humid (non-condensing) or dry compressed air; industrial gases according to application design.

More

VA 500 - Flow meter for compressed air and gases

Insertion flow meter for existing pipes: DN 15–1000 (NPS ½–40) depending on shaft length; larger diameters on request. Versions up to 50 bar (approx. 725 psi). Installation and removal under pressure through a ½-inch ball valve; permanent or portable use. Integrated pressure measurement optional.

More
VA 520 - Flowmeter with integrated measuring section

VA 520 - Thermal mass flow meter for flow measurement

Flow sensor and measuring section for distribution lines and points of use: DN 8–80 (NPS ¼–3), threaded or flanged. Sensor removable for cleaning or recalibration; the measuring section remains installed. Integrated pressure measurement optional.

More
DVGW approval and explosion protection with Ex or ATEX certificate

VA 550 - Thermal mass flow sensor for flow measurement

Rugged thermal mass insertion flow meter for compressed air, industrial gases and fuel gases such as natural gas. Cleanable stainless steel tip and aluminium housing. Versions up to 50 bar (approx. 725 psi), special version up to 100 bar (approx. 1,450 psi). Optional integrated pressure measurement and ATEX/IECEx or DVGW versions.

More
VA 570 - Thermal mass flow meter with integrated measuring section and ATEX and DVGW approval

VA 570 - Thermal mass flow meter for consumption measurement

Rugged thermal mass flow meter with a cleanable stainless steel tip and integrated measuring section for permanent consumption measurement. For compressed air, industrial gases and fuel gases such as natural gas. Optional integrated pressure measurement and ATEX/IECEx or DVGW versions.

More
For pipes from ¾'' to 20''

VD 500 - Flow sensor for wet compressed air

Differential pressure insertion flow sensor for compressor capacity, efficiency measurement and compressed air audits. For wet compressed air downstream of the water separator, dry compressed air and suitable gases; versions up to 180 °C (356 °F). Integrated pressure and temperature measurement.

More

VD 520 - Inline flow meter

For permanent differential pressure flow measurement in wet compressed air and industrial gases. Flow, consumption, pressure and temperature in one device; the sensor head can be removed from the integrated measuring section for calibration.

More

Accessories

Measuring sections for precise measurements

Measuring section with a defined inside diameter, suitable straight inlet and outlet runs, and a ball valve for the insertion sensor.

More

Hot tapping saddles

Add a measuring point to an existing pipe: tapping saddle with ball valve for outside diameters of 32–335 mm (approx. 1.26–13.19 in.), selected for the pipe material and operating pressure. Further sizes on request.

More

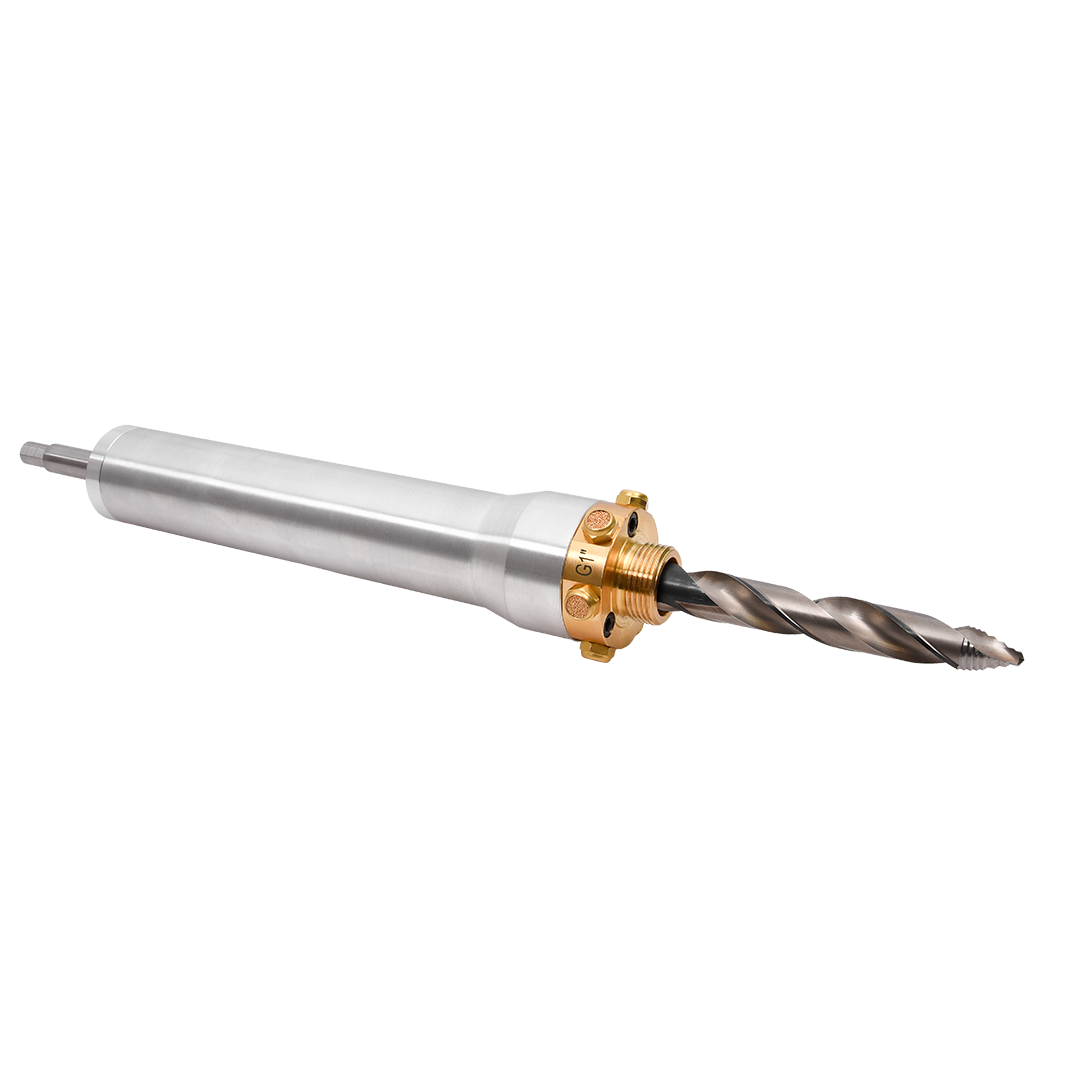

Drilling device incl. drill for setting up a point of measurement

Professionally drill prepared measuring points through the ball valve under pressure, without interrupting production.

More

High-pressure protection

Additional protection for installing and removing suitable insertion sensors from 10 bar gauge (approx. 145 psig).

More
Thickness meter CS 0495

Thickness meter CS 0495

Measure pipe wall thickness and combine it with the outside diameter to determine the inside diameter for flow measurement.

More

Drilling jig for set up a measuring site

By means of a special drilling device a measuring site with 1/2" ball valve can be easily set up within a few minutes.

More

Need a different pipe size or still looking for the right volumetric flow meter? Tell us about your measurement task. We can help even if you do not yet have all the technical details.

Gas flow meters: gas types and applications

Depending on the sensor, version and calibration, we offer gas flow meters and flow sensors for:

  •  Air and compressed air
  • Natural gas
  • Methane (CH₄)
  • Nitrogen (N₂)
  • Oxygen (O₂)
  •  Argon (Ar)
  • Biogas
  • Carbon dioxide (CO₂)
  • Nitrous oxide (N₂O)
  • Propane (C₃H₈)
  •  Hydrogen (H₂)
  • Helium (He)
  • Welding shielding gases (e.g. argon/CO₂ mixtures) and forming gases
  • Vacuum and sub-atmospheric applications

We assess other gases and gas mixtures with you.

An example: VA 550 – installation under pressure, including in large pipes

For harsh industrial conditions: a robust, cleanable stainless steel sensor tip, stainless steel wetted parts and a die-cast aluminium housing (IP67; ATEX/IECEx versions: IP65). The sensor can be installed and removed under pressure through a ½-inch ball valve – for cleaning or recalibration. With the appropriate version and shaft length, the series covers DN 20 to DN 1000 (NPS ¾–40); larger nominal sizes on request. Pressure versions up to 50 bar (approx. 725 psi), a special version up to 100 bar (approx. 1,450 psi) and temperature versions up to 180 °C (356 °F) are available. Optional ATEX/IECEx or DVGW versions are subject to their respective specifications.

Flow meter types: which measurement principle suits your application?

Each physical measurement principle has its own strengths. Our different measurement systems allow you to select by gas type, gas quality, measuring range, pressure and installation conditions. We help you find the right principle and version.

Thermal mass flow meters:

Thermal sensors determine mass flow from the heat transferred from a heated sensing element to the gas. With a known gas type and suitable calibration, they provide the standard volumetric flow rate directly, without additional pressure or temperature compensation. The method captures total consumption as well as small residual flows and leak rates. The VA series offers insertion sensors and devices with integrated measuring sections. Depending on the version, the VA 550 measures from 0.05 m/s (approx. 0.164 ft/s), with a turndown ratio of up to 1000:1; the High-Speed version reaches 224 m/s (approx. 734.9 ft/s). Both velocity values are referenced to 20 °C (68 °F) and 1,000 mbar absolute (approx. 14.504 psia).

Differential pressure flow meters and Venturi technology:

The dynamic pressure probes in the VD series calculate flow from differential pressure, pressure, temperature and gas density. In the VD series and the CMM 500, a high-precision differential pressure sensor allows measurement to start at low flow velocities and provides a wide turndown ratio. The VD series offers solutions for compressor measurements, high pressures, wet compressed air and industrial gases. Suitable versions can be configured using gas data for different gases and known gas mixtures, without adjustment using the actual process gas. Zero-point adjustment on the VD and CMM series can be performed directly on site. The CMM 500 uses the Venturi principle to measure compressor capacity on test benches and during operation. As a compressed air meter, it also provides measurement data for consumption-based billing, for example as part of "Compressed Air as a Service".

Vortex flow meters:

Vortex sensors detect the frequency of vortices downstream of a bluff body. The VU 570 detects these vortices using ultrasound; the VX 570 uses piezoelectric detection with a reference vibration measurement. The method is useful for industrial gases and gas mixtures, including those with a changing composition. The VX 570 also covers steam and liquid applications. Gas density is required to calculate mass flow. The VU 570 measures pressure and temperature internally, as does the VX 570 in the version with integrated pressure and temperature sensors – no external sensors or separate flow computer required.

Clamp-on ultrasonic flow meters:

Clamp-on sensors determine flow from the difference in transit times of ultrasonic signals travelling with and against the flow. The VC 600 measures from outside the pipe without opening it and without additional pressure loss. It detects flow direction and is suitable for retrofits and temporary measurements. Pressure and temperature are taken into account when converting to the standard volumetric flow rate; external sensors can be connected.

Measurement principleStandard volumetric flow rateStrengths and measurement tasksInstallationProducts
Thermal mass flowMass flow directly; standard volumetric flow rate for a known gas type and suitable calibrationLeak rates, total consumption, small residual flows and baseline demand; very low flow velocities and wide turndown ratioInsertion sensor or integrated measuring sectionVA 526, VA 500, VA 520, VA 550, VA 570, VA 521, VA 525
Differential pressure / VenturiCalculated using integrated pressure and temperature measurement and gas density; no external sensors requiredCompressor capacity, wet compressed air, high pressures; wide turndown ratio from low to very high flow velocities; reference measurements; flexible configuration for gases and known gas mixturesInsertion sensor, integrated measuring section or Venturi measuring sectionVD 500, VD 520, VD 550, VD 570, CMM 500
VortexCalculated using integrated pressure and temperature measurement; gas data as required for the output variableIndustrial gases and gas mixtures; steam and liquids as well with the VX 570Measuring section with threaded or flanged connectionVU 570, VX 570
Clamp-on ultrasonicCalculated using pressure and temperature; gas data as required for the output variableRetrofitting without opening the pipe, temporary measurements and flow direction detection; low flow velocities, also in high-pressure linesOn the outside of the pipeVC 600

Standard volume, cfm and adjustable reference conditions

Gas volumes can only be compared when their reference conditions match. Depending on the sensor, these can be set on the display, via software or in an app. Examples are 20 °C (68 °F) and 1,000 mbar absolute (approx. 14.504 psia), labelled "ISO 1217" on the VC 600, or 0 °C (32 °F) and 1,013.25 mbar absolute (approx. 14.696 psia) according to DIN 1343. Where flow is stated in cfm (cubic feet per minute), the unit alone does not define the reference conditions. We help you establish the right reference conditions for your measurement task.

Flow meter installation and retrofitting

  • Insertion sensor through a ½-inch ball valve: Installation and removal under pressure, for cleaning or recalibration. With the sensor removed, the closed ball valve isolates the measuring point and keeps it available for future use. The safety ring secures the insertion probe during installation and removal under pressure. Additional high-pressure protection is used from 10 bar gauge (approx. 145 psig). Suitable threaded connection bosses with ball valves or tapping saddles support retrofitting. At prepared connections, a measuring point can be professionally drilled under pressure. We select the tapping saddle and sensor shaft to suit the actual pipe outside diameter and installation conditions.
  • Sensor with an integrated measuring section: Depending on the version, the sensor and measuring section are calibrated as a unit. Threaded and flanged versions support permanent installations. Depending on the model, options include R or NPT threads and flanges to DIN EN 1092-1 or ANSI/ASME. We match the connection standard, nominal size and pressure rating to your pipework. Compact models with flow straighteners simplify installation where space is limited. The measuring section is installed with the pipe depressurised.
  • Clamp-on from the outside: The pipe remains closed and under pressure. The sensor is attached to the outside of the pipe using a suitable mounting system.

Flow metering outputs and interfaces: 4–20 mA, Modbus and bus systems

As digital flow measuring instruments and flow transmitters, our sensors for compressed air and gases send measured values and totaliser readings to PLCs, control systems or data loggers. Analogue outputs, pulse outputs and Modbus RTU are available on many sensors; further bus systems are available as options. Availability depends on the model and version.

InterfaceApplicationAvailability
4–20 mA · Pulse/alarmPLCs, displays and consumption totalisationStandard or selectable on most sensors
Modbus RTU (RS 485)Data loggers and control systemsStandard on many sensors; model- and version-dependent
Modbus TCP · Ethernet/PoE · M-BusNetworking, energy management and remote meter readingModel- and version-dependent
IO-LinkMachine-level connectivity and machine building/OEM applicationsAvailable depending on the model and version
HARTProcess control systemsVA 550, VA 570, VD 550 and VD 570: optional, on request
BluetoothSet-up and live values in the CS SensorAppVC 600 and VA 526

Calibration and calibration certificates

Research, development, production and calibration from a single source – Made in Germany. Our flow sensors are supplied with a factory calibration certificate. Optional certificates include an ISO calibration certificate with multiple calibration points and documented traceability, or a DAkkS calibration certificate. DAkkS is Germany's national accreditation body. We currently provide DAkkS calibrations through a partner laboratory accredited to DIN EN ISO/IEC 17025, within the scope of its accreditation.

Our calibration benches use DAkkS-calibrated reference instruments. With our new volumetric flow calibration bench, we calibrate for different pipe diameters and gases at pressures up to 30 bar (approx. 435 psi). We have applied for our own DAkkS accreditation for this calibration scope.

On request, we calibrate from 1 L/min (approx. 0.0353 ft³/min) up to 8,000 Nm³/h (approx. 4,709 ft³/min at the same reference conditions), depending on the calibration bench. We match the flow rate, gas type, reference conditions, pressure and certificate to your application. For suitable sensors and gases, we offer adjustment using the actual process gas.

Frequently asked questions about selecting and using flow meters

Consumption measurement joined our product portfolio in 2004 with the VA 300. Today, we develop, manufacture and calibrate volumetric flow sensors for compressed air and gases. We support you from selection and configuration through to subsequent recalibration.

Compressor capacity is measured on the supply side, usually directly at the compressor outlet before drying, where the compressed air is still wet. Free air delivery (FAD) is the compressor’s delivered air flow rate, referred to specified inlet conditions. The VD 500 and VD 550 differential pressure insertion sensors are suitable for this task and can also be retrofitted. For high-accuracy compressor capacity and reference measurements on test benches, the CMM 500 is available with a Venturi measuring section: ±0.5% of reading between 0.2 Qmax and Qmax under the specified installation and reference conditions.

Compressed air consumption is measured on the demand side: after treatment, at the main supply downstream of the air receiver, upstream of compressed air manifolds, on production-area supply lines or at individual machines. Thermal sensors from the VA series are suitable for this volumetric flow measurement, such as the VA 500 insertion sensor or the VA 520 with a measuring section. The VC 600 measures from outside the pipe without opening it. These air flow meters record flow rate and totalised compressed air consumption. Load profiles show baseline demand, peak demand and changes in consumption during production; they also provide indications of leaks.

Sensors with integrated measuring sections, such as the VA 520, cover DN 8 to DN 80 (NPS ¼–3); insertion sensors such as the VA 500 and VA 550 cover larger pipes up to DN 1000 (NPS 40) with the appropriate shaft length. DN denotes the nominal size, not the actual pipe diameter. For example, DN 150 corresponds to NPS 6; an ASME steel pipe of this size has an outside diameter of approximately 168.3 mm (6.625 in.). Insertion sensors and the VC 600 require the actual inside diameter for the flow calculation; this is the outside diameter minus twice the wall thickness. For the VC 600, we select the quick-release clamping system by the actual outside diameter, for common pipe sizes of 25–90 mm (approx. 0.98–3.54 in.). We take wall thickness and pipe material into account when selecting the sensor. We assess larger pipe diameters on request. Do not yet have all the pipe details? We help with selection and configuration.

Yes, with a suitable insertion or clamp-on sensor. Insertion sensors such as the VA 500 and VA 550 can be installed and removed under pressure through a suitable ball valve. Where there is no connection, the pipe can be professionally drilled under pressure through a tapping saddle or a weld-on threaded boss equipped with a ball valve, using suitable drilling equipment. The VC 600 is mounted on the outside of the pipe; the pipe remains closed.

CS INSTRUMENTS recommends calibration every twelve months; the appropriate interval depends on the application, gas quality and internal quality requirements. Our sensors are designed for long-term measurement stability. Every sensor is supplied with a factory calibration certificate. Optional certificates include an ISO calibration certificate with multiple calibration points and documented traceability, or a DAkkS calibration certificate through a partner laboratory accredited to DIN EN ISO/IEC 17025, within the scope of its accreditation.

For a temporary demand analysis, options include an insertion sensor such as the VA 500 combined with the PI 500 portable handheld instrument, or the VC 600 clamp-on sensor. For continuous compressed air consumption monitoring, internal consumption allocation and energy performance indicators, we recommend a permanent installation with a data logger, control system or energy management system.

The price depends on the measurement principle, nominal size, pressure rating, approvals and interfaces. Useful details include gas type, flow range, pressure, temperature, pipe size, pipe material and, if known, wall thickness and connection type. You do not need all these details for your first enquiry: describe your measurement task and we will help with selection and configuration.

For natural gas consumption, a suitable gas flow meter may be selected from the VA 550 or VA 570 series. We take DVGW approvals (Germany) and ATEX/IECEx versions for potentially explosive atmospheres into account according to your application. For biogas, we match the device and version to the gas composition, residual moisture, potentially corrosive constituents and operating conditions. The measured values support cost allocation and efficiency comparisons. Contact us to discuss your application.

For natural gas, we offer suitable device versions with DVGW approval. During selection, we establish whether you need internal operating data or legally regulated billing (e.g. custody transfer). DVGW approval is not equivalent to approval for every billing application. We help you select the appropriate version and identify the required documentation.

Measurement allocates purchased or on-site-generated gases to their points of use and makes unnecessary consumption visible. Measurement data can help optimise argon consumption, identify indications of leaks, or compare on-site nitrogen generation with cylinder supply. Cost assessments consider measured quantities together with actual supply costs.

Yes, with a vacuum flow measurement solution designed for your application – for example, at the suction line of a vacuum pump or a vacuum packaging machine. Thermal and differential pressure methods can be suitable, depending on the measurement task. Our application engineers match the sensor and measuring range to absolute pressure, gas type, temperature, pipe dimensions and expected flow.
