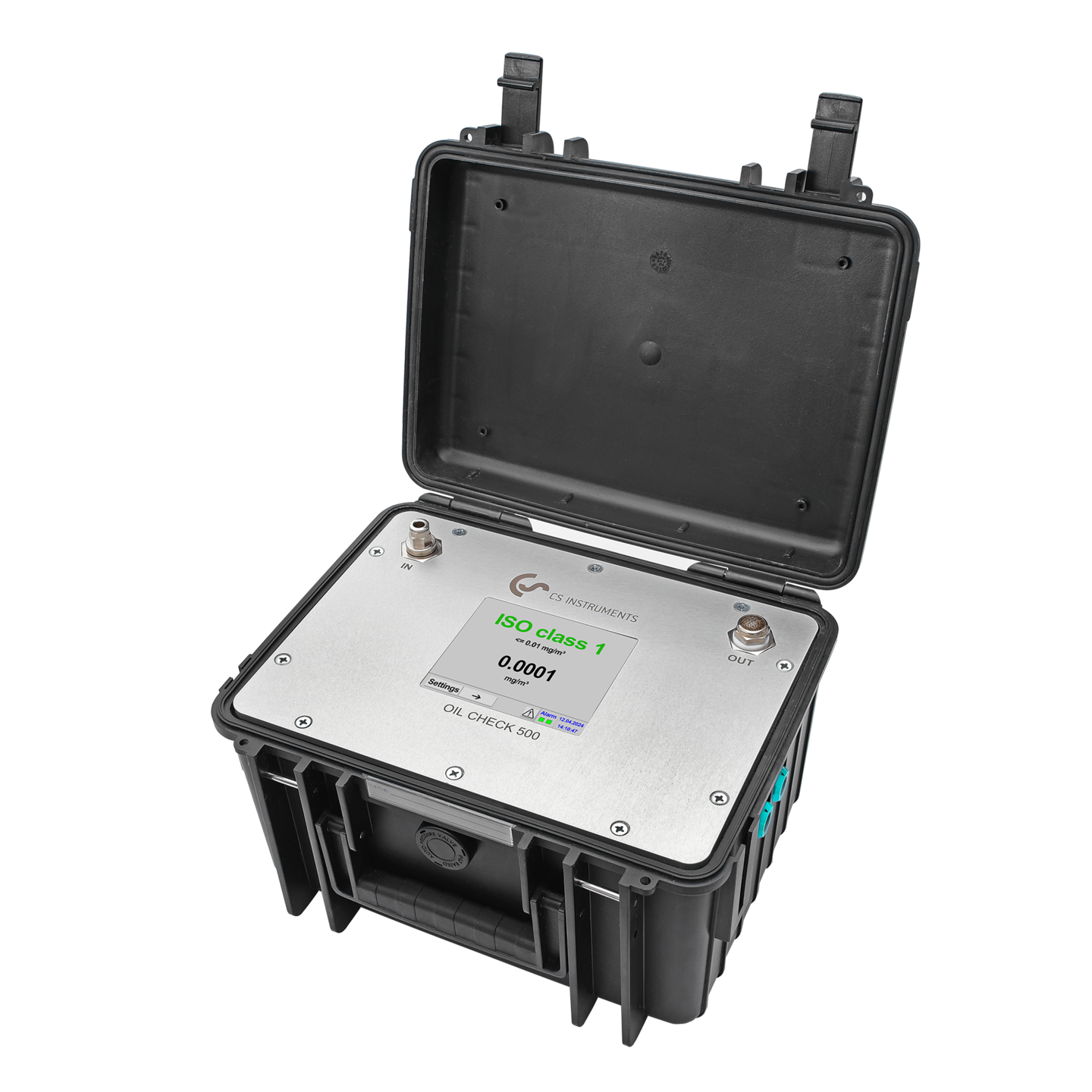

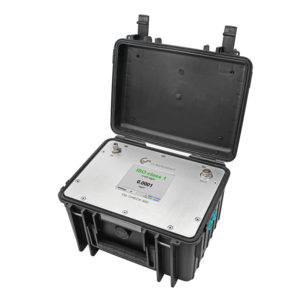

OIL CHECK 500 Portable

The Portable version of our monitoring system for measuring the Vaporous Residual oil content of Compressed air and Nitrogen comes in a practical case and is the ideal solution for flexible measurement at different locations.

"Forced Pressure Variation" for Long-term stable measurement results - auto-calibration:

Using the innovative "Forced Pressure Variation" measuring method, the OIL CHECK 500 generates reference gas in different mass concentrations within the device. This method, which is protected by CS INSTRUMENTS, can be used to compensate for ageing or contamination-related components in the measurement signal, in particular long-term drift. No wearing parts such as
activated carbon filters are required to generate zero air. The result is Low maintenance and Long-term stable Measuring.

Service-friendly, no downtime:

The sensor unit can be replaced by the customer on site. This eliminates the need to return the entire device for recalibration.

to the inquiry
The product has been added to inquiry.
to the inquiry

Details

Process reliability:

All functions / components are monitored internally. A complete function test report can be printed out via service software.

On-site calibration:

Calibration can be carried out in the field using test gas cylinders. The Service Software can be used to generate a
verification report (as-found data) and a calibration report (as-left data) can be generated.

Ideal for Portable Measuring:

Compact measuring devices in a case. Simple sampling and fast measurement results.

Simple installation

Air inlet / air outlet - sampling via PTFE hose
or stainless steel line.
Digital and analog interfaces as standard.
Connection via M12 plug

Service friendly - no downtime

Loosen four screws - replace sensor unit. At the push of a button
a complete function test is carried out. This means that
Measuring can be continued almost without interruption.

OIL CHECK 500
